Corbys Crags

Page last updated: 16/12/2017

Site CodeEstablishedClosedNGRMap LinksGeograph
YCBC1951NU139099Google Maps Bing Maps Old-MapsPhotos

Linked Sites

Related Routes

Location Map

History

Corby's Crags was initially established as part of the 1951 Manchester to Kirk o'Shotts television route [link to feature], providing an intermediate site bewteen Pontop Pike and Blackcastle Hill. In common with the other sites on this route there was initially a relatively short steel tower carrying a pair of dishes facing in each direction, together with a brick building for the equipment, including standby generator.

The site was later used for the Backbone link [feature] running over a similar route to the north west but diverted to Muggleswick rather than Pontop Pike. The current structure is a large square tower, dating from the early 1960s and with steelwork to support a number of horn antennas.

Post Office drawing DRG 100012 - assumed to be early 1970s - provides an analysis of the tower loading including the antennas then installed or proposed. These were all 12 ft dishes except where stated: four facing Pontop Pike, four facing Wooler, two facing Boulmer and a "small" horn facing Muggleswick. A 1975 photo shows two additional horns which presumably were already present but not relevant to the analysis.

The 1951 building survives and is possibly used by site sharers. A number of 18 GHz links are still operational, including one to Wooler.

Photos

1955

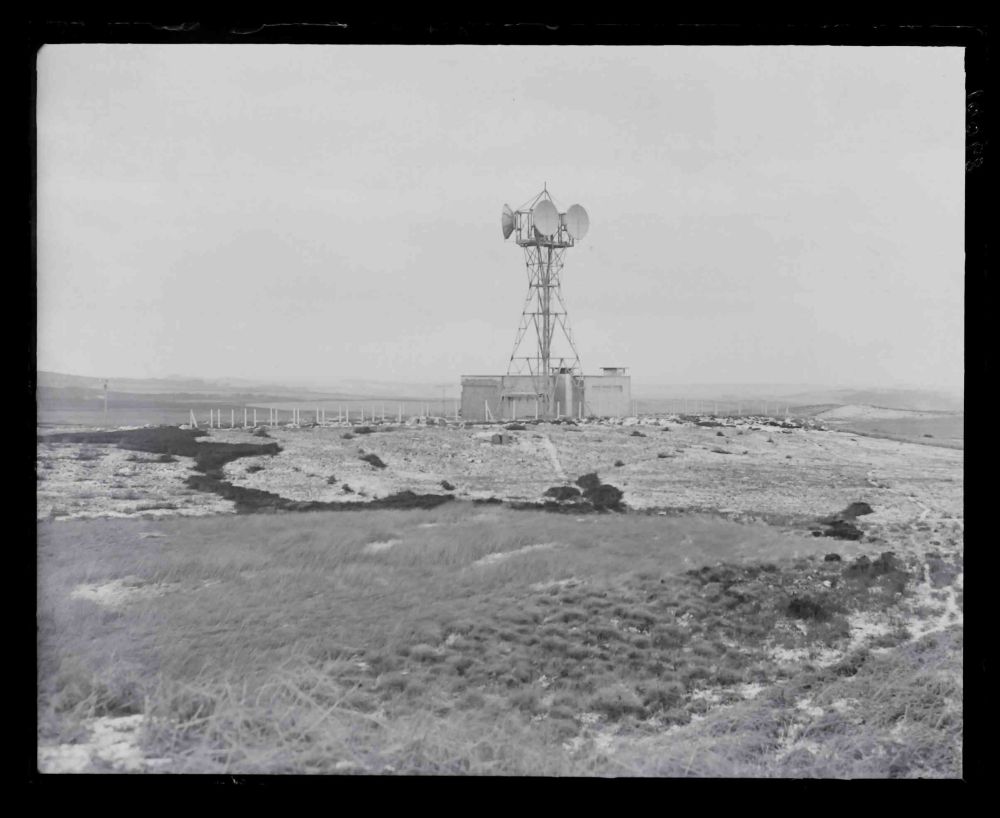

Corbys Crags 1955

Copyright BT Heritage [TCB417/E 19968]

1975

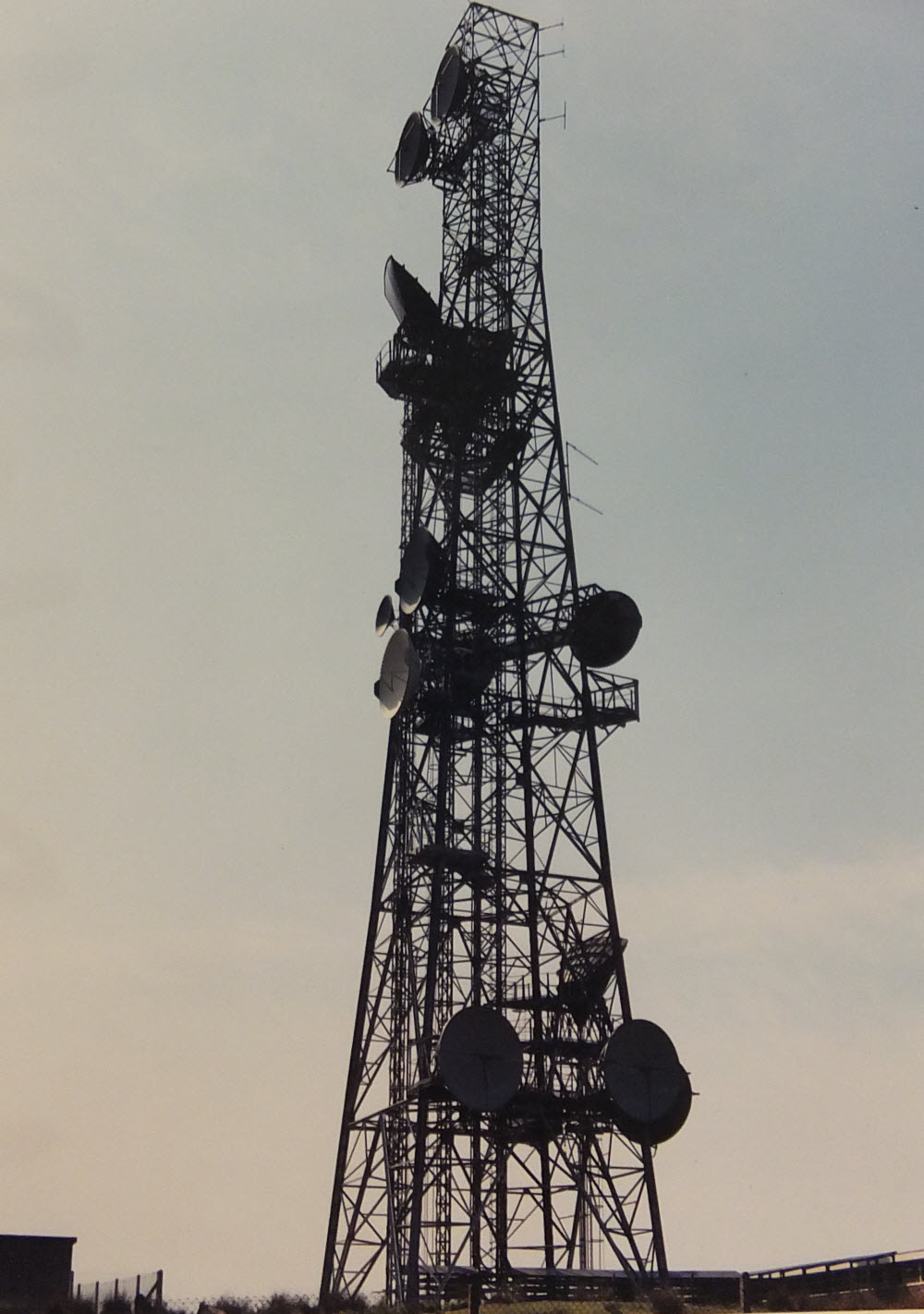

Corbys Crags 1955

Copyright BT Heritage [TCB417/E 64585]

2011

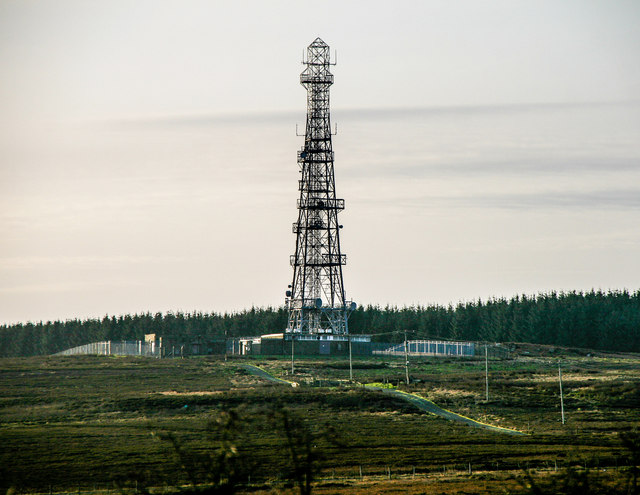

Corbys Crags 2011

Copyright Peter McDermott(Geograph)

2015

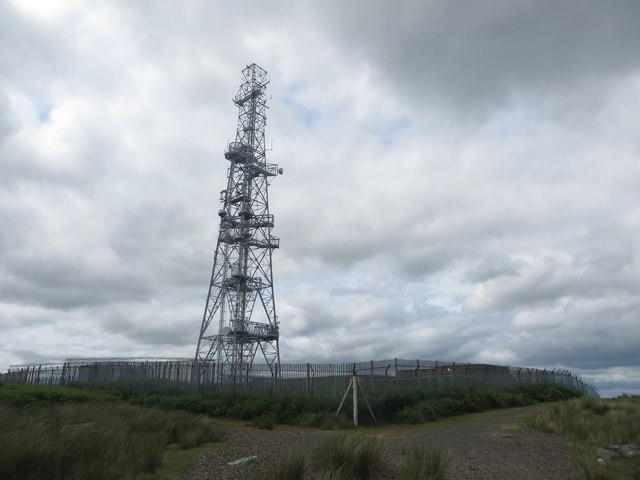

Corbys Crags 2015

Copyright Graham Robson(Geograph)
